3168 Sq.Ft. Barn

44'x72' Western

Starting At: $119,700*

Add 12' Length with Loft: $16,400

With Accessories: $129,000*

Accessories shown listed in overview section

  • Shipping, engineering not included.
  • Prices subject to change.
  • Renderings for visual reference only. Local codes may require different timber sizes, plates, or changes to dimensions.

*For Mortise-and-Tenon options please call Timberlyne to speak to a representative

Download PDF

Package Overview

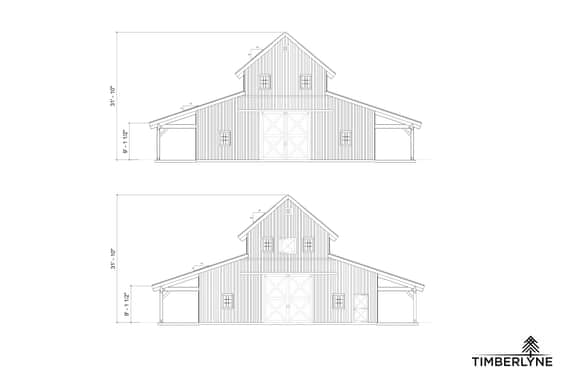

Accessories Shown:

  • (16) 6-Lite 26”x37” Hopper Windows
  • (1) 42”x7’ Walk-Out Door
  • (2) 12’x12’ Double Sliding Doors
  • (1) 4’x4’ Loft Door
  • (2) Widow’s Peaks
  • (2) Copper Louvered Gable Vents

Standard Options

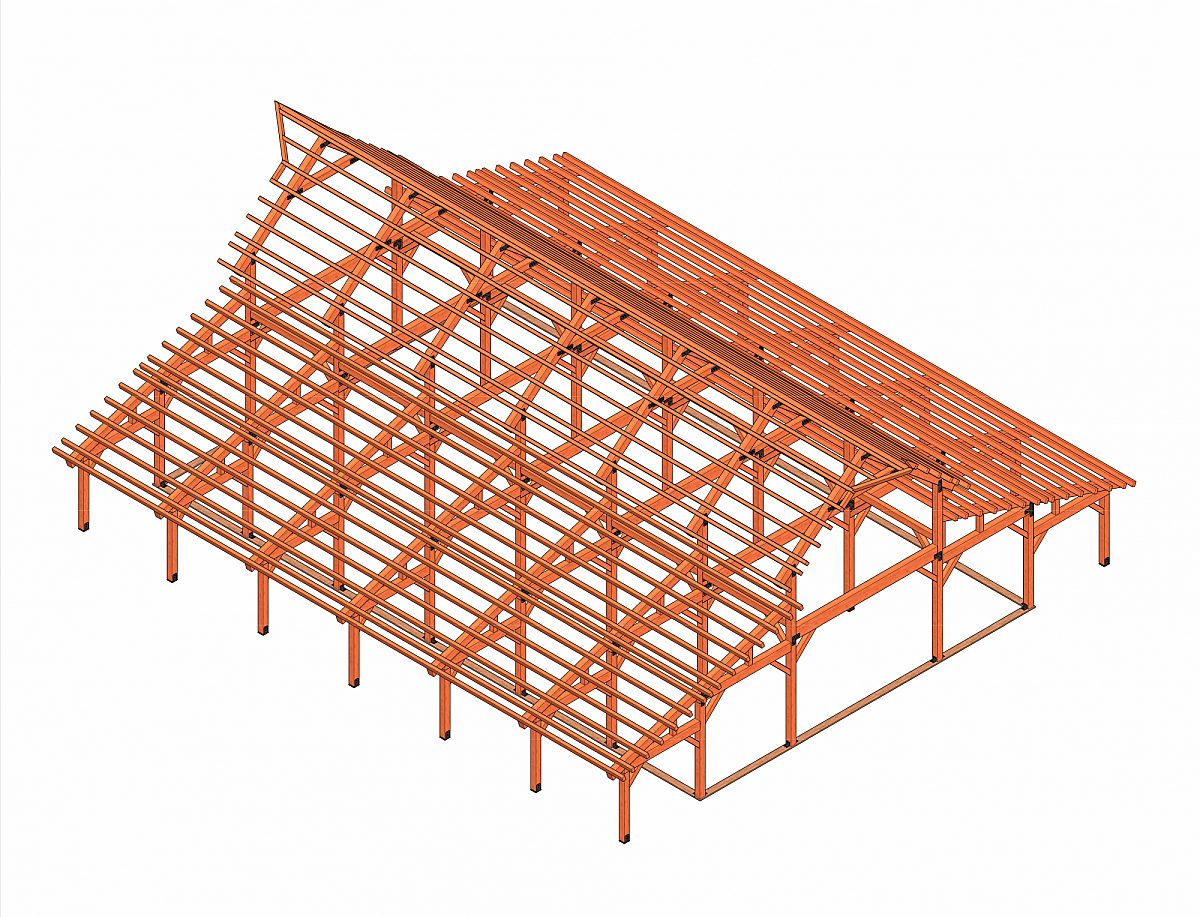

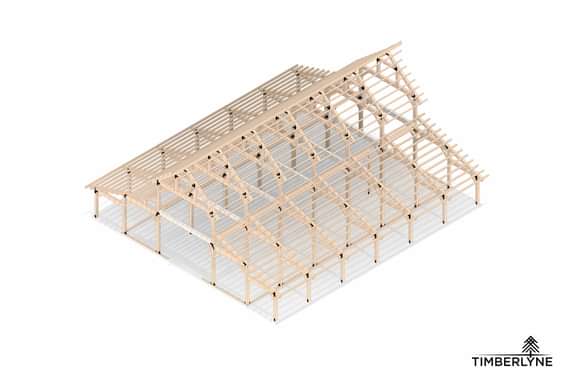

  • Frame: 8x precision-cut timbers, powder-coated steel joinery
  • Walls: 2x6 girts, 1/2" sheathing, house wrap, sill, KD pine siding: 1x10 board, 1x4 batten
  • Roof: 4x6 purlins, KD 1x10 roof decking, roof underlayment

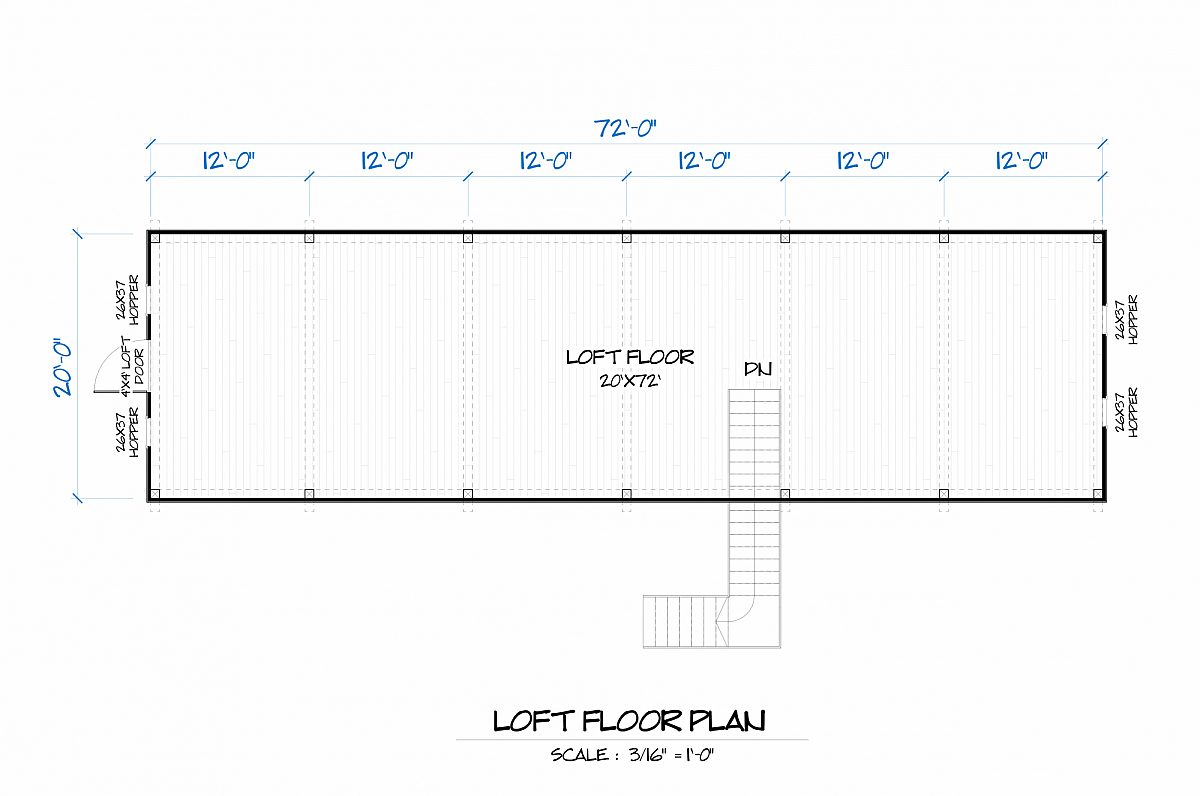

  • Second floor: 2x6 T&G decking, 2x10 joists

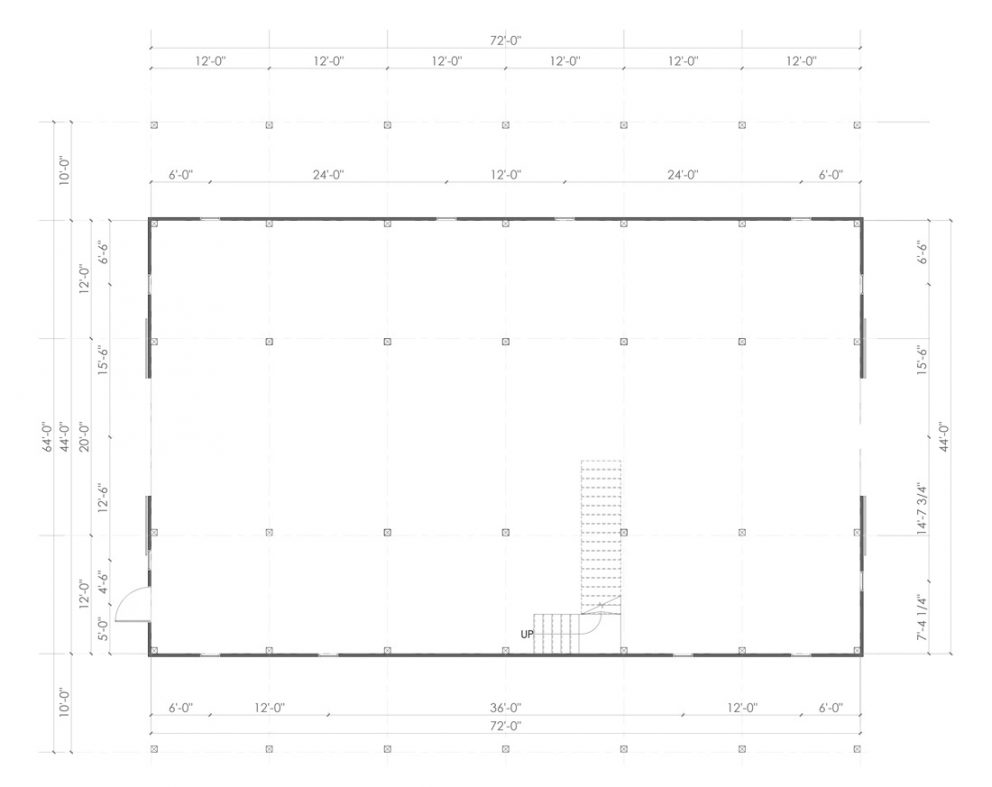

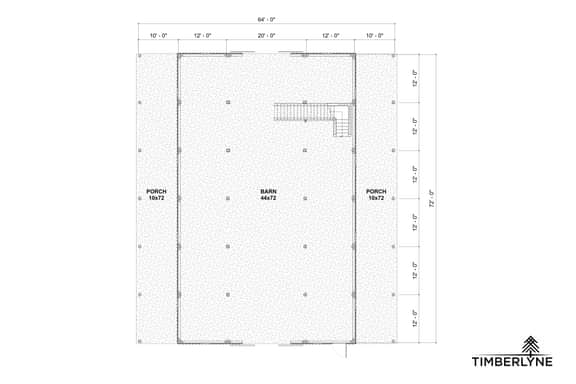

  • Structural building plans, foundation plans
  • Construction guide and phone support

  • Final roofing material
  • Interior walls, wall insulation, interior finishing
  • HVAC, plumbing, electrical
  • Site prep, foundation, utility hookups

  • (16) 6-Lite 26”x37” Hopper Windows
  • (1) 42”x7’ Walk-Out Door
  • (2) 12’x12’ Double Sliding Doors
  • (1) 4’x4’ Loft Door
  • (2) Widow’s Peaks
  • (2) Copper Louvered Gable Vents

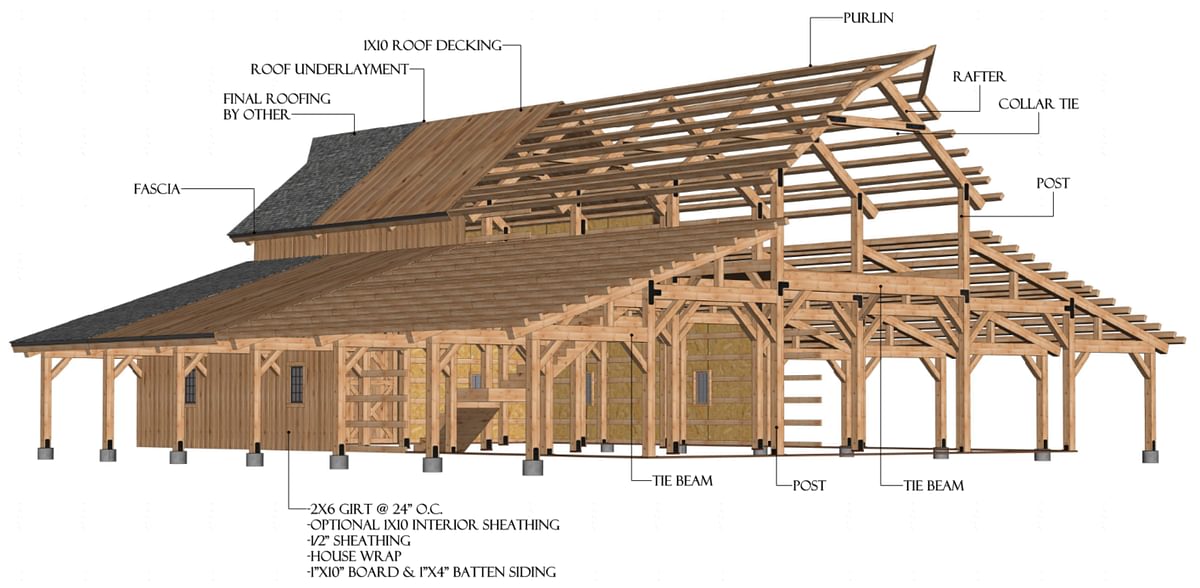

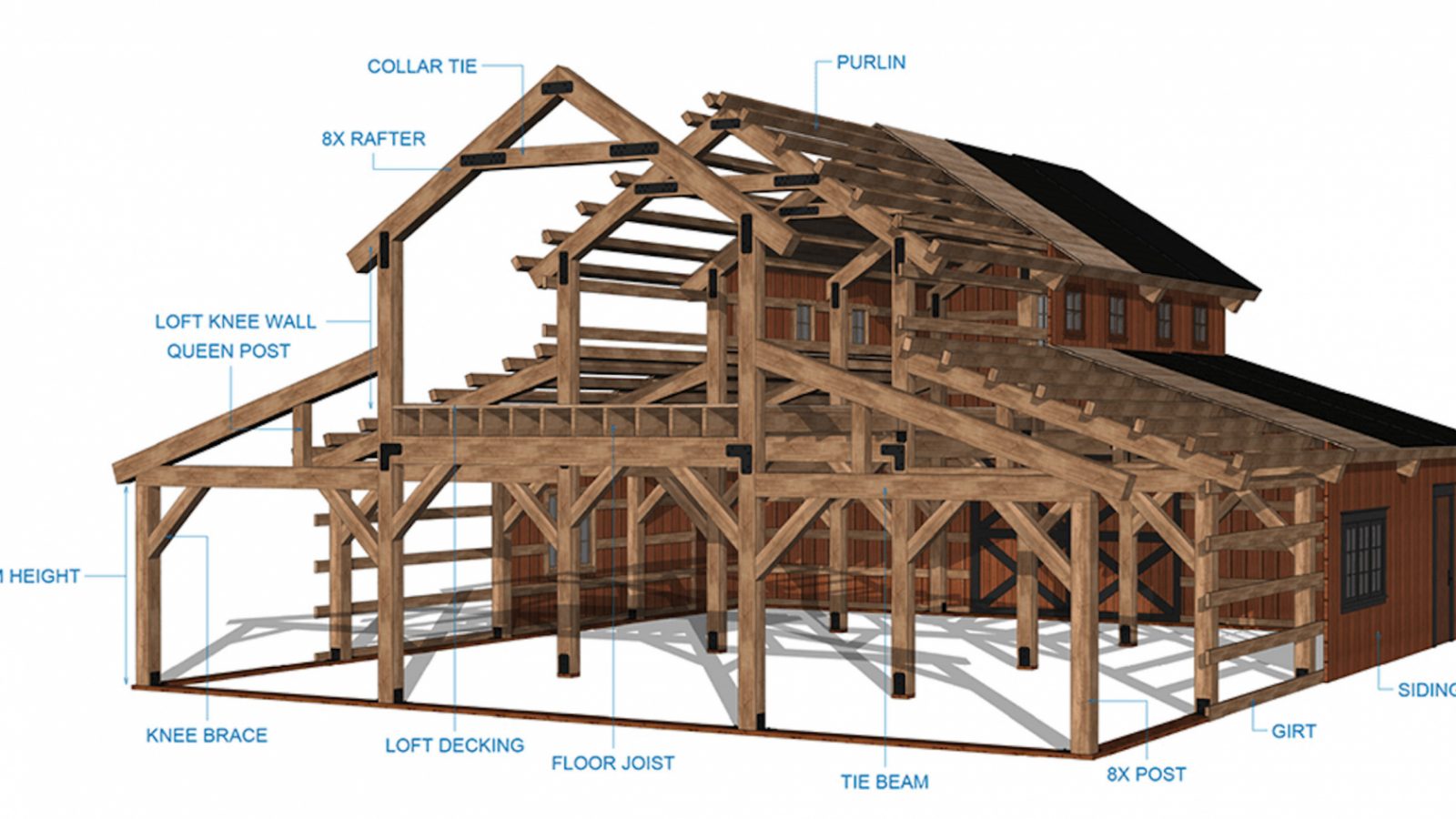

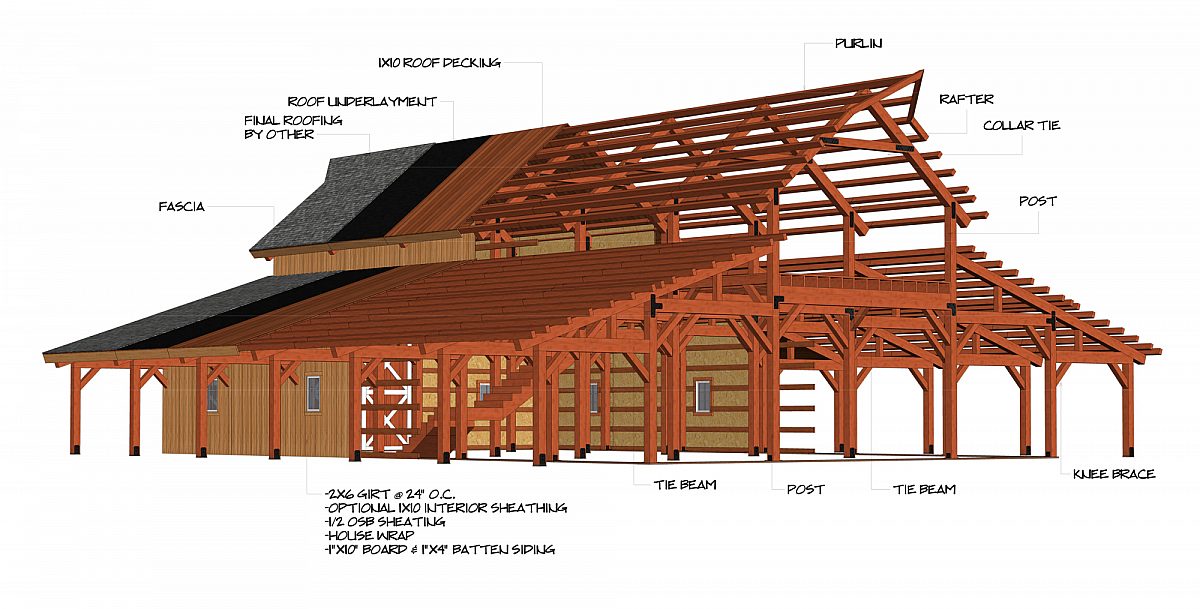

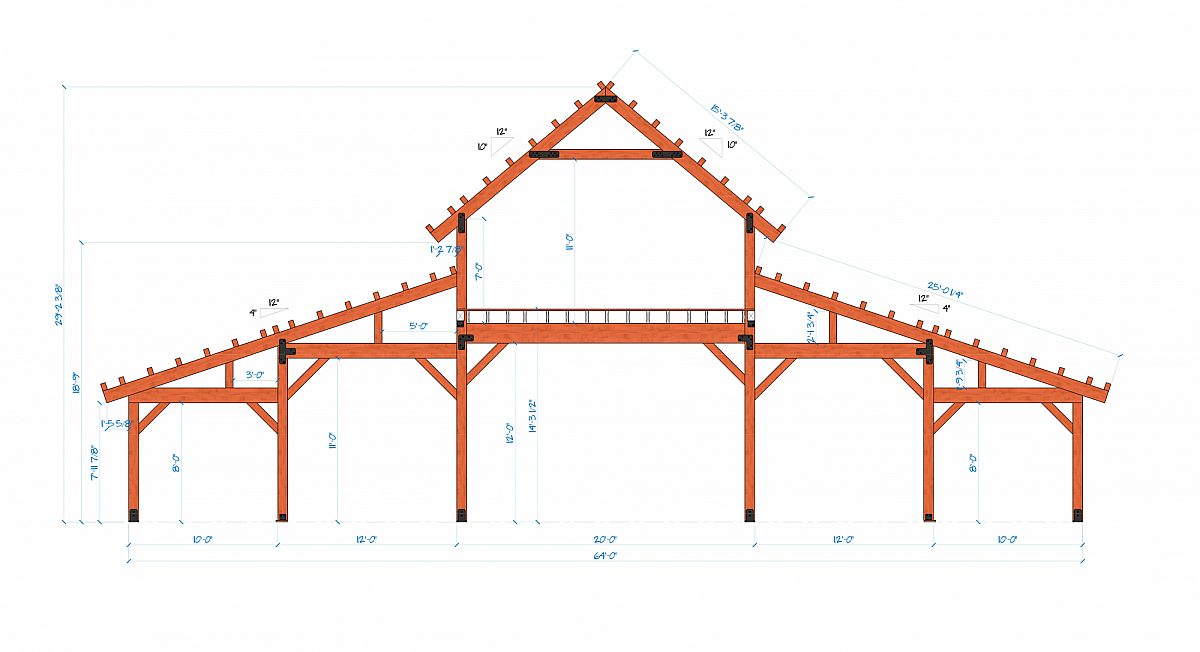

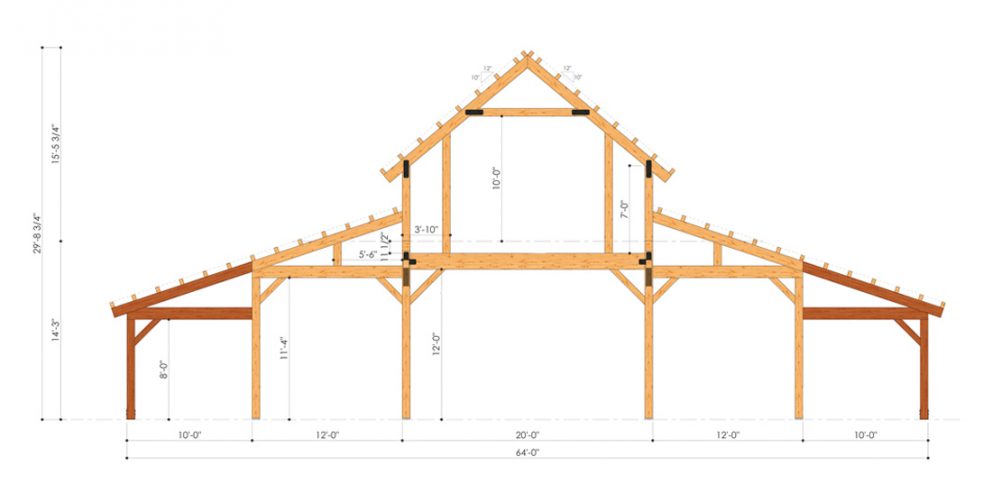

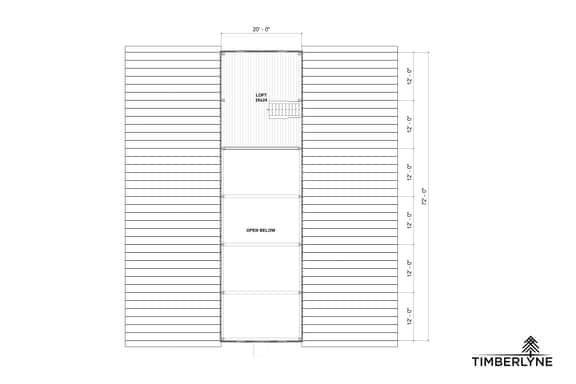

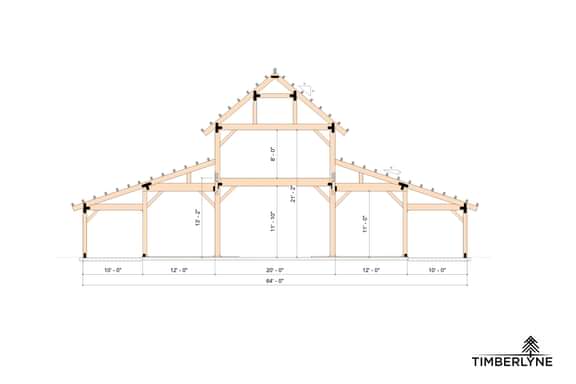

Standard Package Diagram

Standard Package Diagram
